Sand Chaser

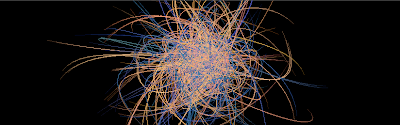

Built a screen saver with the help of a wonderful new gem called ruby-processing. I've been messing around with Processing in java for a little bit as friendly intro to opengl effects and shaders.
Was very happy to find such an advanced ruby gem that leverages both the power of jruby and processing.


Check out the java version on OpenProcessing.org

Compare with the JRuby Applet. (Can take a minute to load)

Here's the ruby code:

    1 require 'ruby-processing'
    2
    3 class SandChaser < Processing::App
    4   include Math
    5   attr_reader :grains, :num_grains
    6
    7   def setup (dx=0, dy=0, size=150)
    8     srand Time.now.to_i
    9     @dx, @dy = 0, 0
   10     hint(ENABLE_OPENGL_4X_SMOOTH )
   11     @num_grains = size
   12     reset_all
   13   end
   14
   15   def draw
   16     count = 0
   17     @grains.each {|grain| count += grain.move }
   18     if count == @grains.size
   19       sleep 3
   20       reset_all
   21     end
   22   end
   23
   24   def mouse_pressed
   25     reset_all
   26   end
   27
   28   def reset_all
   29     @grains = []
   30     @num_grains = ((rand 5)+2) *(10**((rand 2)+1))
   31     #start with two source colors
   32     @source_colors = [[rand(255), rand(255), rand(255), rand(30)+45],
   33                      [rand(255), rand(255), rand(255), rand(30)+45]]
   34     #set the backgrond color to black
   35     background 0
   36     @num_grains.times do |i|
   37       # initialize the sand grains with a
   38       # random vector going in any direction
   39       # starting from the center of the screen.
   40       vx = (rand * 2) - 1 # random number between -1 and 1
   41       vy = (rand * 2) - 1 # random number between -1 and 1
   42       #magnitude multiplier based on the screen size
   43       k = ((width+height)/2)/5.to_f
   44       @grains[i] = Grain.new(width/2, height/2, k*vx, k*vy, i)
   45       # vvt -= 0.00033
   46       # vt += vvt
   47     end
   48     @grains.each { |grain| grain.find_target }
   49   end
   50
   51   def some_color
   52     #randomly pick from one of the 2 source colors.
   53     choice = @source_colors[rand(2)].dup
   54     #boost the 4 elements of the color by upto 60
   55     choice.map! { |c| c + rand * (60) }
   56     # decrease the alpha by 30percent.
   57     choice[3] = choice[3] * 0.7
   58     #introduce random colors a 5th of the time
   59     return choice
   60   end
   61 end
   62
   63 SandChaser.new :width => 500, :height => 258,
   64                :title => "Sand Chaser", :full_screen => true
   65
   66 class Grain
   67  include Math
   68  attr_reader :x, :y, :color, :index
   69
   70  def initialize(x, y, vx, vy, index)
   71    @app = Processing::App.current
   72    @x, @y = x, y
   73    @vx, @vy = vx, vy
   74    @index = index
   75    @color = @app.some_color
   76  end
   77
   78  def move
   79    #approach the target
   80    if ( (@vx.abs + @vy.abs) > 0.001 &&
   81         @x.between?(0, @app.width) &&
   82         @y.between?(0, @app.height)
   83       )
   84      @vx += (@target.x - @x)
   85      @vy += (@target.y - @y)
   86      newX = @x + @vx*1/60.to_f; newY = @y + @vy*1/60.to_f
   87      draw_from_point_to_point(@x, @y, newX, newY)
   88      @x, @y = newX, newY
   89      return 0
   90    end
   91      return 1
   92  end
   93
   94  def draw_from_point_to_point( fromX, fromY, toX, toY)
   95    # draw points between the from and to coordinates
   96    # to smooth out the effect.
   97    smoothing_factor = 1
   98    numberOfIncrements = @app.dist(fromX, fromY, toX, toY)
   99    numberOfIncrements*=smoothing_factor.to_f
  100
  101    xDistance = ([fromX, toX].max - [fromX, toX].min)
  102    xincrement = xDistance/numberOfIncrements.to_f
  103    yDistance = ([fromY, toY].max - [fromY, toY].min)
  104    yincrement = yDistance/numberOfIncrements.to_f
  105
  106    xDir, yDir = 1, 1
  107    xDir = -1 if toX < fromX
  108    yDir = -1 if toY < fromY
  109
  110    (numberOfIncrements.to_i+1).times do |i|
  111      @app.stroke *@target.color
  112      @app.point fromX+(i*xDir*xincrement), fromY+(i*yDir*yincrement)
  113    end
  114  end
  115
  116  def find_target
  117    #find another grain at random to follow.
  118    @target = @app.grains[rand @app.grains.size]
  119  end
  120 end
